Safplus_info — Inspect the status of all components in a cluster

Introduction

In large distributed clusters, there are often hundreds of components and a large amount of runtime information that developers need to inspect. Safplus_info is a lightweight tool provided by OpenClovis that helps developers quickly observe and diagnose the state of every component in a cluster.

What is Safplus_info?

Safplus_info is a command-line tool (with an optional UI) that displays the current status of OpenClovis SAFplus Platform components and customer application components running in a cluster. It centralizes common inspection tasks — listing topology elements, showing detailed states, and simulating basic failover actions.

Prerequisites

  1. A full model generated from the OpenClovis IDE.
  2. The model must be started and running.

Starting Safplus_info

Open a terminal in the bin directory and run the tool with root privileges. For example:

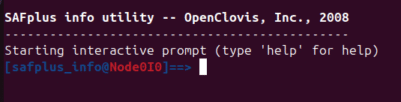

This is the interface for the first time starting Safplus_info

To start the graphical interface (available since OpenClovis 6.1):

Key commands

Below is an overview of the most commonly used commands and what they do.

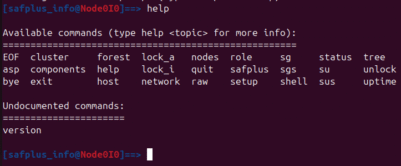

  • help: Show the full list of available commands.

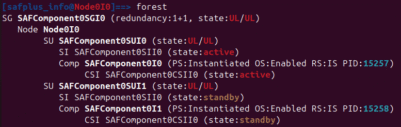

  • forest: Display the cluster topology and summary information for SG, Node, SU, SI, and other components. Use this to get an at-a-glance view of the cluster structure.

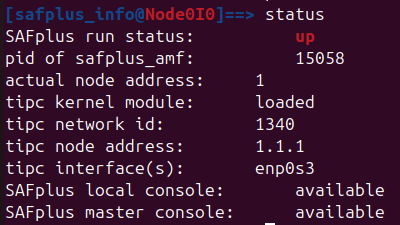

  • status: Show the current status of the local node (for example: up, down, etc.).

  • sus: Inspect detailed states for some given SU (Service Unit). This command reports administrative state, presence state, readiness state, and similar attributes.

  • lock_a: This is a special command applied to sg, node, su, and si to lock the service assignment of them.

  • lock_i: This is a special command applied to sg, node, and su to lock their initialization.

  • unlock: Opposite of the lock_a command, this command unlocks the service assignment for sg, node, su, and si.

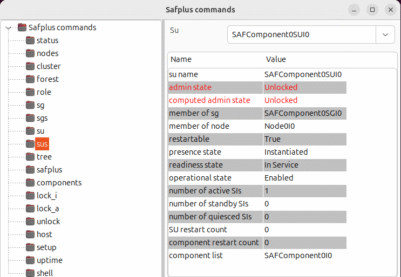

Safplus_info UI

Starting with OpenClovis 6.1, Safplus_info includes a graphical user interface that provides an intuitive visualization of component states. The UI highlights states and relationships, making it easier to spot anomalies and monitor high-availability behavior. Start it with “sudo ./safplus_info –ui” as shown above.

Conclusion

Safplus_info provides convenience for developers when they need to observe the status of components in a cluster. Helps save time and effort when debugging. In addition, adding functions such as lock_a, lock_i, and unlock makes simulating failover and observing high availability easier and clearer. If you need to know details about the safplus_info, don’t hesitate to reach out to us at  support@openclovis.org
